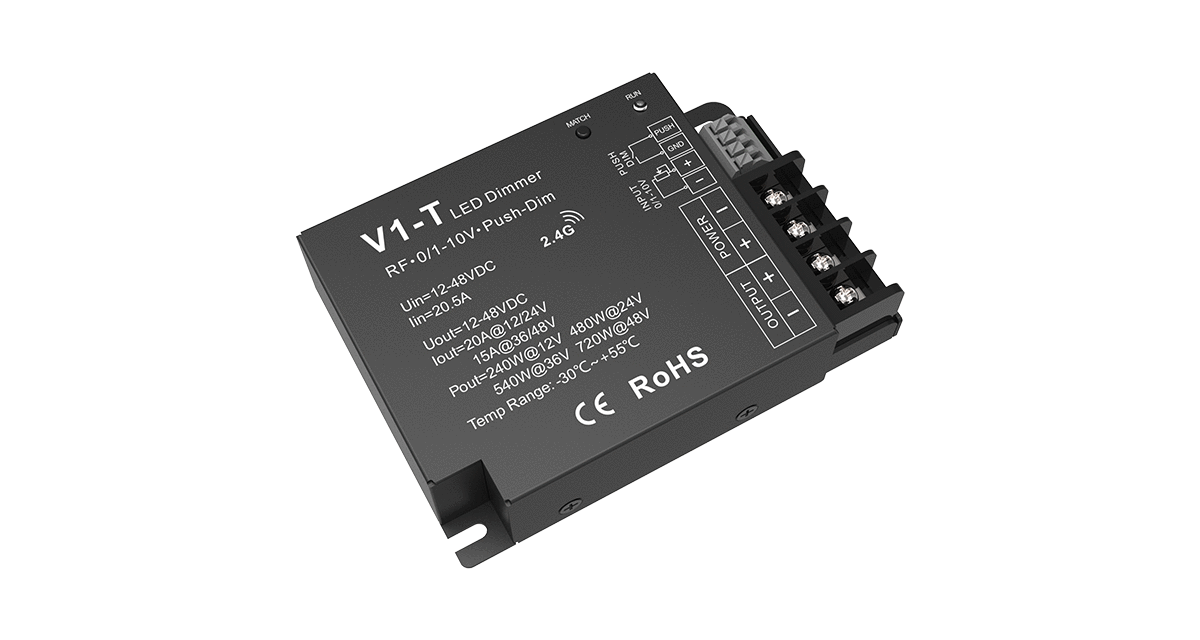

LUZ-T120-DM 12–48VDC 20A 0–10V + Push Dimming LED Controller – Single Channel Smart Driver

The LUZ-T120-DM is a high-capacity single-channel LED controller designed for precision dimming and advanced lighting control. Supporting 12–48VDC operation, it offers compatibility with a wide range of LED fixtures and delivers up to 720W of output power. Featuring multiple input control modes — RF 2.4GHz, 0–10V, and Push Dim — it ensures flexible integration into both manual and automated lighting systems. With a 2000Hz PWM frequency and comprehensive protection features, this controller delivers smooth, flicker-free dimming and exceptional reliability for architectural and commercial lighting applications.

Key Features:

Multi-mode dimming control: RF 2.4GHz, 0–10V, and Push Dim

High output capacity supporting up to 720W

Single-channel design for precise brightness adjustment

Flicker-free dimming with 2000Hz PWM frequency

Over-heat, over-load, and short circuit protection with automatic recovery

Wide input voltage range (12–48VDC) for versatile installations

Ideal for modern LED systems requiring seamless control and performance

Key Specifications:

Model: LUZ-T120-DM

Type: LED Dimming Controller

Input Voltage: 12–48VDC

Output Current: 20A@12/24V, 15A@36/48V

Power Output: 240W / 480W / 540W / 720W (12V / 24V / 36V / 48V)

Channels: 1CH

Input Signal: RF 2.4GHz + 0/1–10V + Push Dim

PWM Frequency: 2000Hz

Protection: Over-heat, Over-load, Short Circuit (Auto Recovery)

Control Type: Manual + Remote + 0–10V Signal

Material: High-durability housing for stable thermal performance

Ideal Usage:

Gardens & Pathways: Dimming control for low-voltage outdoor LED systems

Driveways & Entrances: Adjustable brightness for ambient and security lighting

Patios & Terraces: Smooth dimming for decorative and accent illumination

Hotels & Resorts: Integrates into smart lighting systems for guest comfort and energy efficiency

Retail & Commercial Spaces: Enables precise dimming control for product displays and ambient lighting
