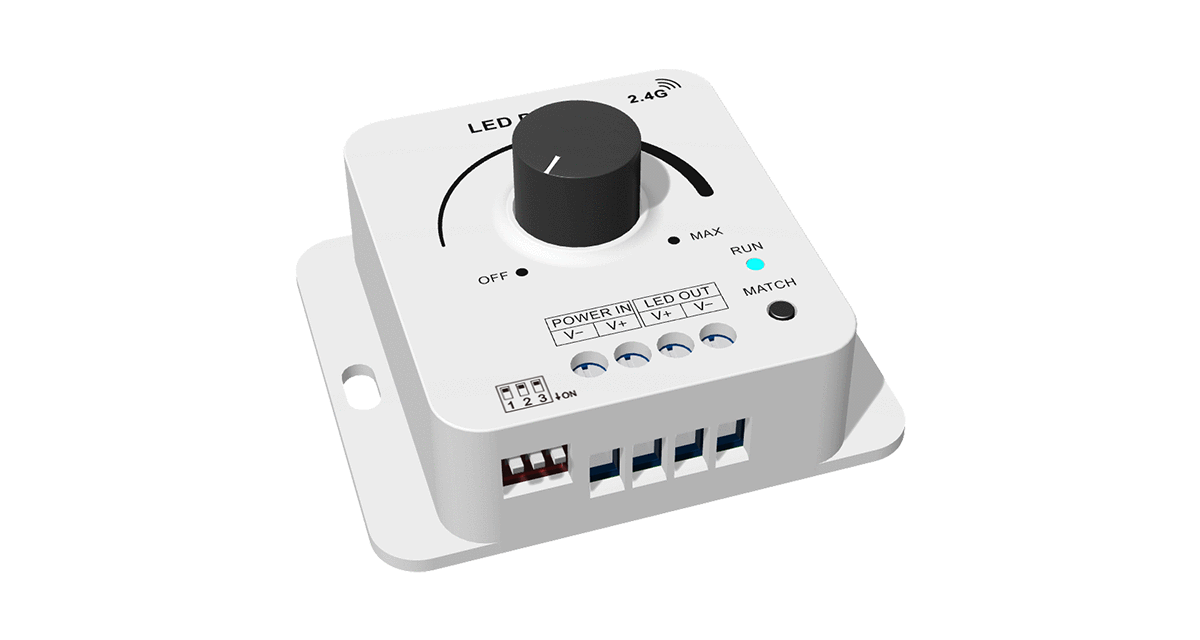

LUZ-RK18-DM 12–48VDC 8A Rotary LED Dimmer – Single Channel RF 2.4GHz Controller
The LUZ-RK18-DM Rotary LED Dimmer combines tactile control with advanced RF technology for smooth and precise lighting adjustment. Operating within a wide 12–48VDC range, this single-channel dimmer supports up to 288W output power, making it suitable for a variety of LED applications. It features a rotary knob for manual dimming and 2.4GHz RF compatibility for remote wireless operation. With selectable PWM frequencies up to 16,000Hz, it ensures flicker-free, high-quality dimming performance. Built-in protection against over-heat, short circuit, and reverse polarity ensures long-term reliability and safety.
Key Features:
Dual control modes: rotary knob and RF 2.4GHz wireless operation
Wide 12–48VDC input range supporting up to 288W output
Selectable PWM frequencies (500/2000/8000/16000Hz) for smooth, flicker-free dimming
Single-channel output for accurate brightness control
Integrated over-heat, short circuit, and reverse polarity protection
Automatic recovery function for uninterrupted operation
Compact and ergonomic design ideal for wall or system integration
Key Specifications:
Model: LUZ-RK18-DM
Type: Rotary LED Dimmer
Input Voltage: 12–48VDC
Output Current: 8A@12–24V, 6A@36–48V
Power Output: 96W / 192W / 216W / 288W (12V / 24V / 36V / 48V)
Channels: 1CH
Control Signal: Rotary Knob + RF 2.4GHz
PWM Frequency: 500 / 2000 / 8000 / 16000Hz
Protection: Over-heat, Short Circuit, Reverse Polarity (Auto Recovery)
Material: Durable housing with stable thermal performance
Mounting: Surface or system integration
Ideal Usage:
Gardens & Pathways: Precise dimming control for outdoor LED fixtures
Driveways & Entrances: Smooth brightness adjustment for ambient lighting
Patios & Terraces: Manual or remote control for mood and decorative lighting
Hotels & Resorts: Intuitive lighting control for rooms, lobbies, and common areas
Retail & Commercial Spaces: Flexible dimming for display and accent illumination
