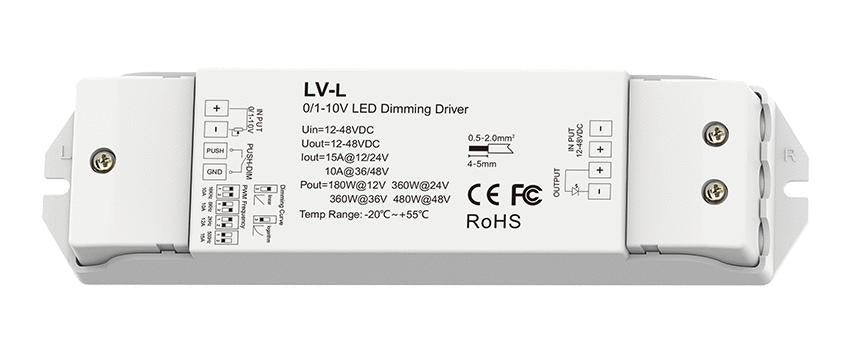

LUZ-LV-L 12–48V 0/1–10V + Push Dimming Adjustable Frequency LED Controller – Single Channel

The LUZ-LV-L LED Controller offers precise brightness management through both 0/1–10V and Push Dimming inputs, providing flexible control for a wide range of LED installations. Designed to operate within a 12–48VDC range, it supports up to 480W of power output and ensures smooth, flicker-free dimming with adjustable PWM frequencies (500Hz, 2kHz, 8kHz, 16kHz). Its single-channel design is ideal for consistent and accurate brightness control. Built-in protection against over-heat, over-load, and short circuits guarantees safe and stable operation, while its auto-recovery function enhances system reliability in demanding lighting environments.

Key Features:

Dual dimming input: 0/1–10V and Push Dim for flexible operation

Adjustable PWM frequencies (500Hz / 2kHz / 8kHz / 16kHz) for flicker-free dimming

High power output up to 480W for versatile LED systems

Single-channel precision control for consistent illumination

Automatic recovery from over-heat, over-load, and short circuit protection

Wide input voltage range (12–48VDC) for various installation types

Ideal for architectural, commercial, and residential lighting applications

Key Specifications:

Model: LUZ-LV-L

Type: Adjustable Frequency LED Controller

Input Voltage: 12–48VDC

Output Current: 15A@12/24V, 10A@36/48V

Power Output: 180W / 360W / 360W / 480W (12V / 24V / 36V / 48V)

Channels: 1CH

Input Signal: 0/1–10V + Push Dim

PWM Frequency: 500Hz / 2kHz / 8kHz / 16kHz (Selectable)

Protection: Over-heat, Over-load, Short Circuit (Auto Recovery)

Control Range: 0–100% smooth dimming

Material: Heat-resistant and durable housing

Ideal Usage:

Gardens & Pathways: Adjustable dimming for energy-efficient landscape lighting

Driveways & Entrances: Smooth brightness control for enhanced visibility and aesthetics

Patios & Terraces: Fine-tuned dimming for comfortable ambient illumination

Hotels & Resorts: Integrates with smart systems for adaptable, mood-based lighting

Retail & Commercial Spaces: Ensures consistent brightness across large installations and displays
