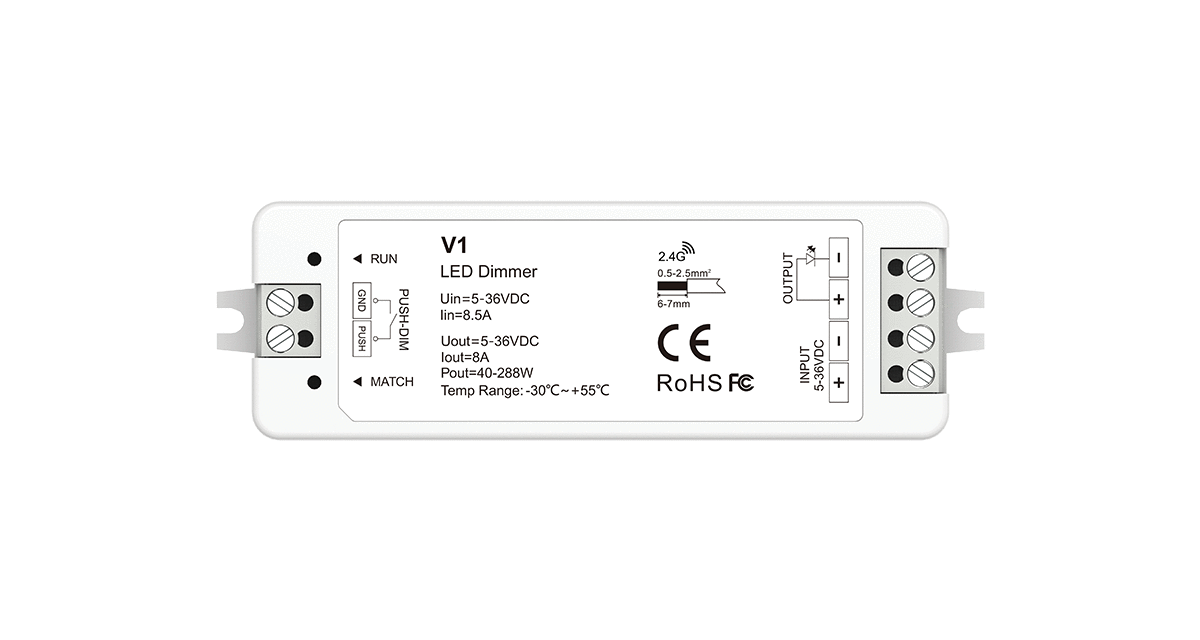

LUZ-181-DM 5-36VDC 8.5A Push Dimmer LED Controller – 1CH RF 2.4GHz + Push Control

The LUZ-181-DM is a high-performance 1-channel LED dimmer controller designed for precise brightness adjustment across a wide voltage range of 5–36VDC. With a maximum output of 8.5A, it supports power loads up to 288W, making it suitable for various low-voltage LED installations. Equipped with RF 2.4GHz and Push Dim control options, it offers flexible operation through both remote and manual wall-switch dimming. Its advanced 2000Hz PWM frequency ensures smooth, flicker-free light output, while built-in protection against reverse polarity, overheating, overload, and short circuits guarantees long-term reliability and safety.

Key Features:

Compatible with 5–36VDC LED systems, supporting up to 8.5A load

Dual control options: RF 2.4GHz wireless and Push Dim manual control

High 2000Hz PWM frequency for flicker-free dimming

Multiple protection circuits: reverse polarity, overheat, overload, and short circuit

Compact, durable design suitable for professional LED installations

Key Specifications:

Model: LUZ-181-DM

Channels: 1CH (Single Channel)

Input Voltage: 5–36VDC

Output Current: 8.5A (Max.)

Output Power: 40W/96W/192W/288W (5V/12V/24V/36V)

Control Signal: RF 2.4GHz + Push Dim

PWM Frequency: 2000Hz

Protection Features: Reverse polarity, overheat, overload, short circuit

Efficiency: >90%

Operating Temperature: -20°C ~ +50°C

Housing Material: Aluminum alloy

Dimensions: Compact and easy to mount

Certifications: CE, RoHS

Ideal Usage:

Gardens & Pathways: Provides adjustable brightness control for low-voltage landscape lighting

Driveways & Entrances: Enhances ambient control for outdoor LED fixtures

Patios & Terraces: Enables smooth dimming for decorative and ambient lighting setups

Hotels & Resorts: Ideal for controlled mood lighting in rooms, lobbies, and architectural features

Retail & Commercial Spaces: Perfect for display lighting, signage, and showroom applications requiring precise light adjustment
